Grooved Pipe Fittings

Published：2020/03/07 Buttwelding Fittings Pipeline miscellaneous 标签：Adaptor Nipple - Groove ThreadAdaptor Nipple Groove SteelFlange Adaptor NippleFlex Rigid CouplingGroove Ecentric ReducerGroove elbowGroove Reduce TeeGrooved Pipe FittingsMechanical T bolted Branch OutletStandard Flexible Couplingviews：6823

Grooved Pipe Fittings

  • Mechanical T bolted Branch Outlet,
    Standard Flexible Coupling,
    Flex Rigid Coupling,
    Groove elbow,
    Groove Reduce Tee,
    Groove Ecentric Reducer,
    Flange Adaptor Nipple,
    Adaptor Nipple Groove Steel,
    Adaptor Nipple – Groove Thread,
Material   Ductile lron
Size  1″,1-1/4″,1-1/2″,2″,2-1/2″,3″,4″,5″,6″,8″,10″,12″,14″ ,16″
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface Paint, Epoxy, Galvanization or Dacroment
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection grooved
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
Quick Details
Place of Origin: Hebei, China                                         Brand Name:XINTAI
Model Number:Grooved Pipe Fittings                           Technics:Casting
Connection:grooved                                                       Shape:Equal
Size:Grooved Pipe Fittings 90 degree Elbow               Models:Banded with or without ribs, Beaded
Treaded:BSPT, NPT                                                     Standard:ANSI, BS, DIN
Application:Steam, air, gas and oil pipes                      Surface treatment:Hot dipped galvanized and Epoxy Painting
Head Code:SquareProduct name:ductile iron grooved fire fighting fitting
Specification:Elbow, socket, Tee, Union, Bushing, Plug
Other product name:  Grooved Tee fittings
Supply Ability:
50000 Ton/Tons per Year Grooved Pipe Fittings 90 degree Elbow Grooved Tee fittings
Packaging & Delivery
1.Cartons without pallets
2.Cartons with pallets
3.Double woven bags
4.As buyer’s requirements.
Grooved Pipe Fittings 90 degree Elbow Grooved Tee fittings ductile cast iron grooved pipe fittings
Port: Tianjin Port, China
Lead Time :
Quantity(Pieces) 1 – 1000 >1000
Est. Time(days) 45 To be negotiated

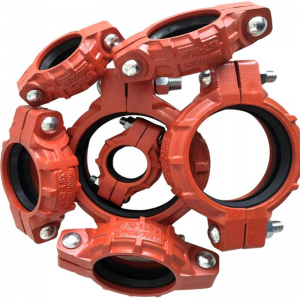

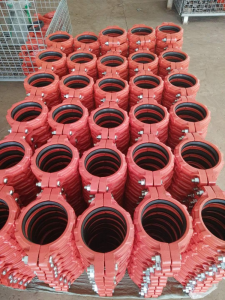

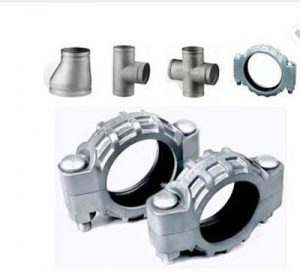

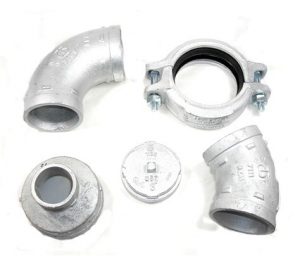

Picture Example:
Grooved Pipe Fittings Grooved Pipe Fittings  Grooved Pipe FittingsGrooved Pipe Fittings
