Insulating Flange

Published:2017/08/01 Pipeline miscellaneous views:2584

Corrosionpedia explains Insulating Flange

Cathodic protection is often supplied to pipelines and other equipment that contain fluids. In order to provide cathodic protection to these systems, insulating flange kits are installed at intervals in the pipeline. These insulating flange kits ensure that the two metallic surfaces are never in contact when an electric current is passed through a pipeline for the purpose of minimizing corrosion. Localized cathodic protection is achieved by placing anodes close to the protected structure.

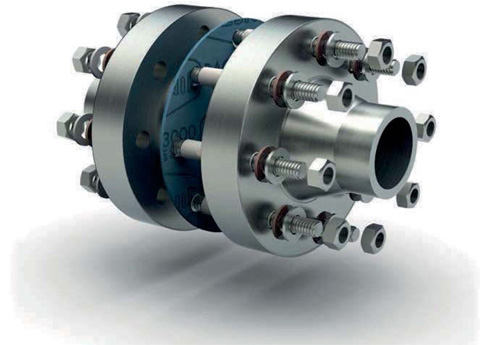

Insulating Flange
The insulating flange kits are available for various pipeline sizes. These kits are installed at spaced intervals, generally where joints exists in the pipelines. These kits help to electrically insulate the pipeline from other foreign metallic structures and plant grounding systems.
